The AM422XN with a small and compatible design, and this microscope is ideal for use in an analog setting. Simply connect to a television or projector and you’re ready to start observing and analyzing specimens.


SKU AM422X Categories , , ,

Adaptable Eyepiece is the Perfect Pair For Your Microscope Needs

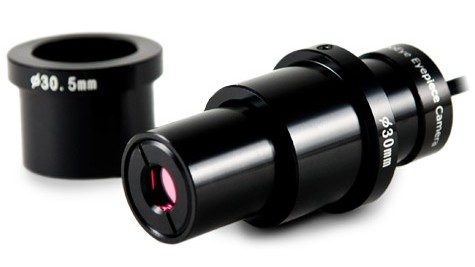

AM422X an analog eyepiece camera for your microscopes makes for a sharable and pleasant experience to get the most excellent visuals of specimens.

Dino-Lite AM422X

Features

TV Connectivity

Simply connects to a television via composite video for either NTSC or PAL standards with 640×480 resolution

Multi-Adaptable Eyepiece

Adapts to most microscopes with 23/30/30.5mm inner diameter eyepiece slots.


Specification

Model AM422X Dino-Eye
Interface TV (NTSC/PAL)
Product Resolution 640×480 pixels (VGA)
Sensor Color CMOS
Unit Dimension 72mm (H) x 23mm (D)
Fits 23mm, 30mm, 30.5mm
diameter eyepiece slots
Package Dimension 16cm(L) x 16cm(W) x 6cm (H)
Unit Weight 100g
