Dino-Lite AM4115TW-CFVW digital microscope equipped with superior optics and macro zoom design, allows you to see life-size objects in stunning detail, making it ideal for biological sample analysis. The addition of a 480nm (blue) excitation light and a 510nm emission filter allows for the observation of green fluorescence, giving you even greater insight into your samples. Whether you’re a professional researcher or just looking to expand your knowledge, the AM4115TW-CFVW Edge series digital microscope is an excellent choice for anyone interested in exploring the microscopic world.


Discover the Stunning Detail with the Dino-Lite AM4115TW-CFVW

See life-size objects in stunning detail, making them perfect for biological sample analysis. Upgrade your observation experience with the AM4115TW-CFVW.

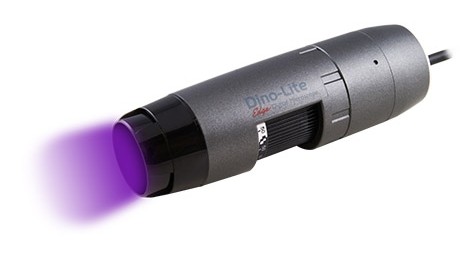

Dino-Lite AM4115TW-CFVW

Features

PC/MAC Compatibility

Get experience with easy recording and sharing of observations in the office or in the field with a compatible PC or MAC with a USB 2.0 port. Conveniently capture and modify photos with the bundled software.

Large-Field-Of-View (FOV) and Depth-Of-Field (DOF)

With its large field-of-view (FOV) and depth-of-field (DOF) features, appropriate range of working distances, and 10x to 50x magnification range, this model is ideal for macro-view fluorescence applications.

Zoomable with Long Working Distance

While maintain the same working distance, further rotation of the magnification dial will focus on a higher magnification range and thereby effectively zoom into the target.

MicroTouch Shutter Button

The MicroTouch feature gives users the option of taking a picture right from the scope itself and was designed to minimize image blur while taking a picture with the microscope. Great for those moments when you need to take a picture but have no access to the computer.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-LB / Long Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions at low magnification.

N3C-OB / Open Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions.

Specification

Model AM4115TW-CFVW Dino-Lite  Edge
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification Rate 10x~50x
Sensor Color CMOS
Frame Rate Up to 30fps
Save Formats Image:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting Using 7 violet LEDs for excitation lighting and has a 430nm emission filter/1 white LED switched by software
Microtouch Touch-sensitive trigger on the microscope for taking pictures
Operating System Supported Windows XP 7/8/10/11
macOS 10.14 or later
Calibration Function Yes
Measurement Function Yes
Unit Dimension 10.5cm (H) x 3.2cm (D)
Package Dimension 16cm (L) x 16cm (w) x 6cm (H)
Unit Weight 100g

Information About Working Distance and Field of View

M WD FOV (x) FOV (y) DOF
50 14 9 7 3
40 42 11 9 5
30 64 15 12 9
20 119 23 19 21
15 182 30 24 39



W Zone
M WD FOV (x) FOV (y) DOF
30 11 14 11 6
20 25 25 20 13
15 39 31 25 22
10 68 41 33 51
5 156 98 78 250

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
