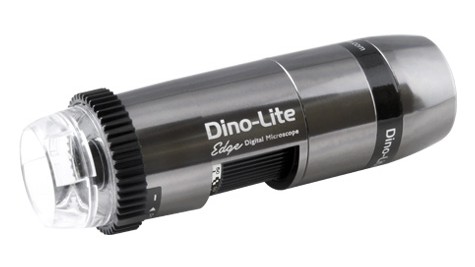

Digital Microscope AM5218MZTW Dino-Lite Edge

Experience unmatched precision with the Dino-Lite AM5218MZTW Edge series microscope. Get crystal-clear images in stunning HD 720p resolution, while the direct HDMI connectivity to HDTV or LCD monitors provides seamless integration. With its built-in polarizer, you’ll be able to observe things in high resolution and see details that were previously hidden. The convenient microtouch sensor allows you to freeze the live video and examine details up close, while the LED lighting can be adjusted with ease. Upgrade your observation and discover a new level of precision with the Dino-Lite AM5218MZTW Edge series microscope.

SKU AM5218MZTW Categories 50x, 720p, FEATURES, HDMI, Interchangeable Caps, Interface, LED, Magnification, MicroTouch, Resolution, White, Wide FOV

Description

Unlock Macro Observations with the Wide Field of View Feature

Name: Digital Microscope HDMI Dino-Lite AM5218MZTW
SKU: AM5218MZTW
Availability: InStock

Get ready to see your objects in stunning HD 720p with the Dino-Lite AM5218MZTW Edge series microscope. This powerful tool is designed for quick inspections, etc. With a wide field of view makes it easy to switch between micro and macro observations. Experience professional-level observation with Dino-Lite AM5218MZTW Edge.

HDMI

720p

10x~50x

8 White LEDs

Features

HDMI Interface

Ease to use the Dino-Lite on any VGA monitor with D-SUB (15-pin) interface. This is suitable for applications such as inspections, presentations, and training.

Wide Field of View (WFOV)

The Wide Field of View feature is designed to provide a large FOV at a reasonable working distance while keeping a crisp image for macro-view observations.

MicroTouch Shutter Button

Effortlessly freeze or unfreeze images with a simple tap and control LED lighting with a longer tap.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

	N3C-C / Close Cap This cap protects the lens and LED lights from contamination by dust, debris, or moisture.
	N3C-D / Diffuser Cap This is a translucent cap that partially softens the LED light.
	N3C-D2 / Opal Diffuser Cap This cap softens and evenly distributes the LED light.
	N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
	N3C-L / Long Cap (30mm length) This cap assists users to find focus quickly at low magnification when it touches the surface.
	N3C-O / Open Cap (9.5mm length) This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.
	N3C-S / Sidelight Cap Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Specification

Model	AM5218MZTW Dino-Lite Edge
Interface	HDMI
Product Resolution	720p
Magnification Rate	10x~50x
Sensor	Color CMOS
Frame Rate	60fps
Microtouch	Yes
Lighting	8 White LEDs
Unit Dimension	10.5cm (H) x 3.2cm (D)
Unit Weight	125g

Information About Working Distance and Field of View

T Zone
M	WD	FOV (x)	FOV (y)	DOF
50	10	9	7	3
40	30	11	9	4
30	60	15	12	6
20	120	23	19
15	170	30	24

W Zone
M	WD	FOV (x)	FOV (y)	DOF
30	10	14	11	6
20	30	25	20
15	40	31	25
10	60	41	33
5	170	98	78

M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
